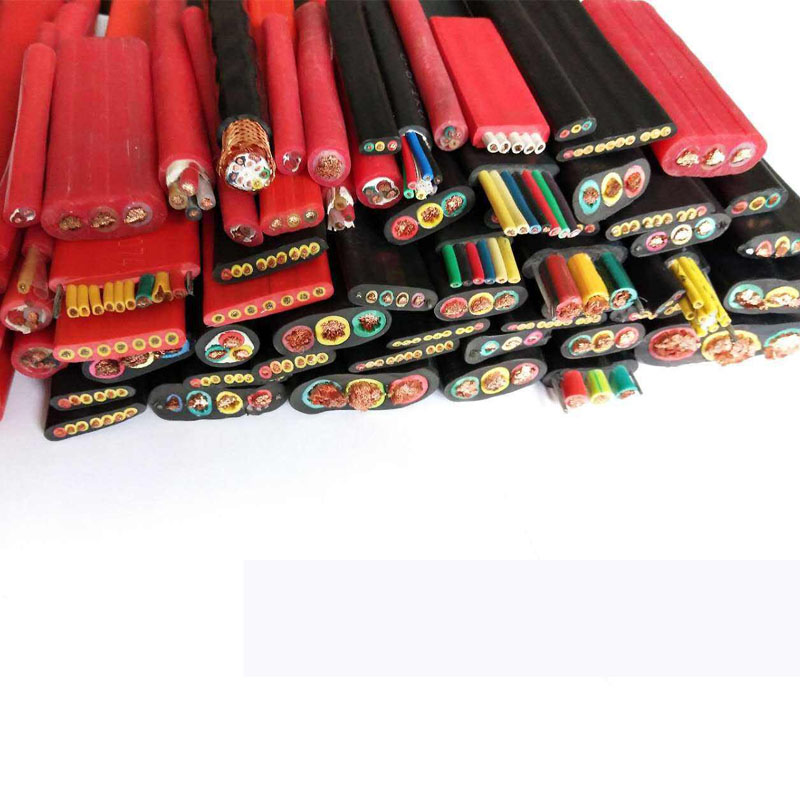

Silicone rubber insulated and sheathed flat cable YGGRB

Silicone rubber insulated and sheathed flat cable YGGRB

  • Silicone rubber insulated and sheathed flat cable YGGRB
  • Silicone rubber flat cabl
  • Product description: Silicone rubber insulated and sheathed flat cable YGGRB can be used in long-term humid environment, with excellent electrical properties and waterproof and mildew resistance.
  • INQUIRY
Silicone rubber insulated and sheathed flat cable YGGRB can be used in long-term humid environment, with excellent electrical properties and waterproof and mildew resistance. Excellent bending performance, zui small bending radius is 16 times the outer diameter of the cable, can be used. Used in high-temperature environments such as mobile motors, steel, aviation, power plants, petrochemicals, etc. with AC rated voltages of 300/500V and below.
Silicone rubber insulated and sheathed flat cable YGGRB characteristics
1, rated voltage: 450V/750V
2, working temperature: -60~ +200 °C, zui high use temperature 300 °C
3. Conductor: bare copper wire or stranded tinned copper wire
4, insulation: silicone rubber
5, protective cover: silicone rubber
6, color: red / yellow / white / black / brown / green, etc.

Silicone rubber flat cable YGCRB specifications

Two core Silicone rubber flat cable

Nominal cross section(mm2)

Conductor structure

Approximate outer diameter of cable

Calculated weight

Number of roots / diameter(mm)

2×4

19/0.52

12.5

194.0

2×6

19/0.63

16.2

330.0

2×10

37/0.58

21.2

390.0

2×16

119/0.41

23.5

670.0

2×25

98/0.58

27.0

984.0

2×35

133/0.58

31.4

1276.0

2×50

189/0.58

36.5

1770.0

2×70

366/0.52

41.4

2273.0

2×95

448/0.52

46.8

3051.0

Three core Silicone rubber flat cable

Nominal cross section(mm2)

Conductor structure

Approximate outer diameter of cable

Calculated weight

Number of roots / diameter(mm)

3×4

19/0.52

14.0

217.0

3×6

19/0.63

17.0

373.0

3×10

37/0.58

22.7

665.0

3×16

119/0.41

24.5

890.0

3×25

98/0.58

28.6

1351.0

3×35

133/0.58

32.6

1744.0

3×50

189/0.58

38.1

2357.0

3×70

366/0.52

43.2

3140.0

3×95

448/0.52

49.6

4224.0

Four core Silicone rubber flat cable

Nominal cross section(mm2)

Conductor structure

Approximate outer diameter of cable Calculated weight

Number of roots / diameter(mm)

4×4

19/0.52

15.1

334.0

4×6

19/0.63

18.1

483.0

4×10

37/0.58

23.7

838.0

4×16

119/0.41

26.0

1173.0

4×25

98/0.58

32.1

1750.0

4×35

133/0.58

36.1

2258.0

4×50

189/0.58

42.2

3052.2

4×70

366/0.52

45.7

3932.0

4×95

448/0.52

54.3

5431.0

Three+One core Silicone rubber flat cable

Nominal cross section(mm2)

Number of roots / diameter(mm)

Approximate outer diameter of cable Calculated weight

Calculated weight(kg/km)

3×4+1×2.5

19/0.52+19/0.41

15.1

325.0

3×6+1×4

19/0.63+19/0.52

18.1

460.0

3×10+1×6

37/0.58+19/0.63

23.7

805.0

3×16+1×10

119/0.41+37/0.58

26.0

1087.0

3×25+1×16

98/0.58+119/0.41

32.1

1670.0

3×35+1×16

133/0.58+119/0.41

36.1

2087.0

3×50+1×25

189/0.58+98/0.58

42.2

2827.0

3×70+1×35

366/0.52+133/0.58

45.7

3617.0

3×95+1×50

448/0.52+189/0.58

54.3

5026.0

We can customize all kinds of silicone rubber flat cables, welcome to provide requirements or drawings.
