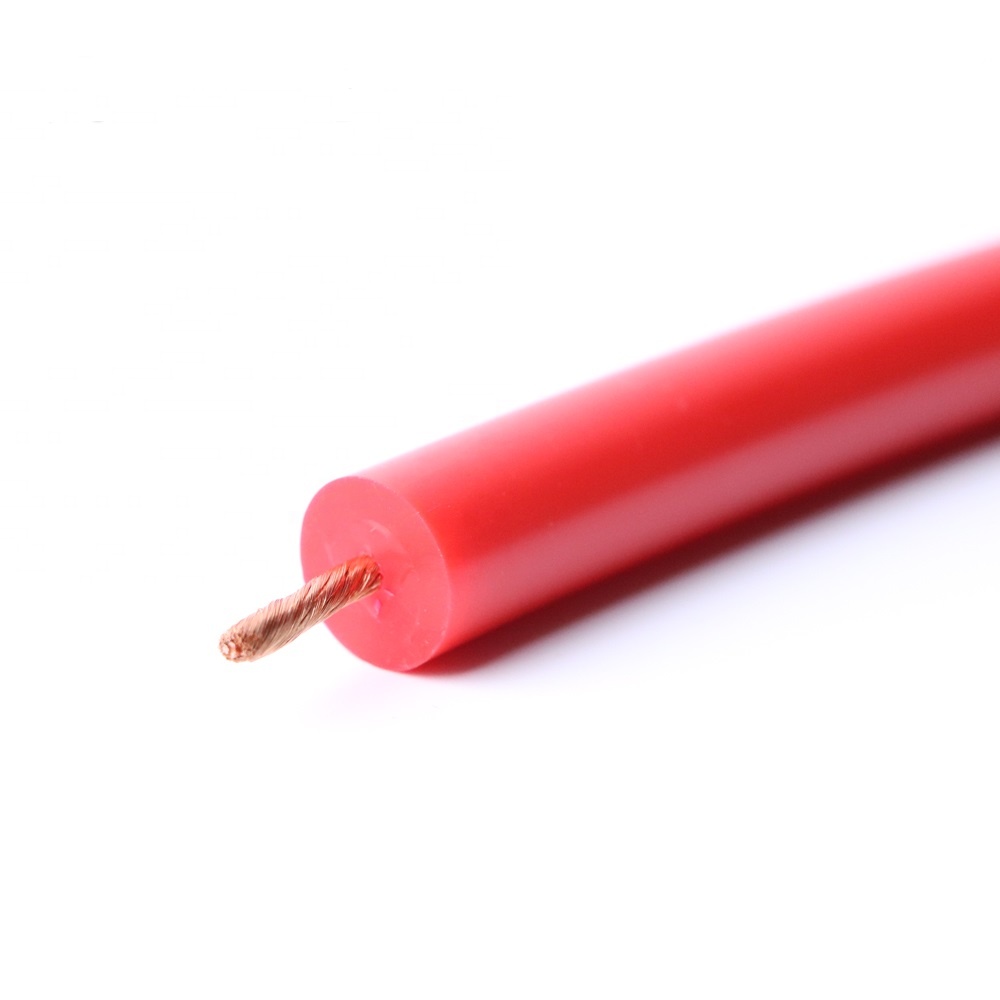

JG Silicone Rubber Wire High Temperature Cable silicone rubber insulation

High Temperature Cable silicone rubber insulation
Product description: JG Silicone Rubber Wire High Temperature Cable silicone rubber insulation has excellent high temperature resistance, low temperature resistance, excellent electrical insulation performance
INQUIRY

JG Silicone Rubber Wire High Temperature Cable silicone rubber insulation has excellent high temperature resistance, low temperature resistance, excellent electrical insulation performance, excellent chemical stability, high voltage resistance, aging resistance, long service life, softness and easy installation.Silicone Rubber cable is suitable for F-class rated voltage 690V, 1140V and below, H-class insulated motor and electrical lead wire, widely used in navigation, defense, train and other high-power motors.
JG Silicone Rubber Wire High Temperature Cable silicone rubber insulation Features:
1. Rated voltage: 500V (690V), 1000V (1140V)
2, working temperature: -60 ~ 180 °C
3. Conductor: bare copper wire or tinned copper stranded wire
4, insulation: silicone rubber
5. Color: agreement between the supplier and the buyer

JG Silicone Rubber Wire High Temperature Cable silicone rubber insulation Specification structure and technical parameters:

Conductor structure			Insulation thickness (mm)		Wire outer diameter (mm)		20 °C conductor resistance is larger (Ω/km)
Nominal cross section (mm2)	Number of roots / wire diameter (mm)	Conductor outer diameter (mm)	500V	1000V	500V	1000V
0.5	28/0.15	0.90	1.0	1.2	2.90	3.30	40.1
0.75	24/0.20	1.15	1.0	1.2	3.20	3.60	26.7
1	32/0.20	1.30	1.0	1.2	3.30	3.70	20
1.5	48/0.20	1.60	1.0	1.2	3.60	4.0	13.7
2	40/0.25	1.85	1.0	1.2	3.90	4.30	9.9
2.5	49/0.25	2.00	1.0	1.2	4.00	4.40	8.21
4	56/0.30	2.80	1.2	1.4	5.20	5.60	5.09
6	84/0.30	3.60	1.2	1.5	6.00	6.60	3.39
10	84/0.40	4.60	1.4	1.6	7.40	7.80	1.95
16	126/0.40	5.80	1.4	1.6	8.60	9.0	1.24
25	196/0.40	7.60	1.6	1.8	10.80	11.2	0.795
35	494/0.30	8.80	1.8	2.0	12.40	12.80	0.565
50	396/0.40	10.60	2.0	2.2	14.60	15.0	0.393
70	551/0.40	12.80	2.0	2.2	16.80	17.20	0.277
95	760/0.40	14.80	2.2	2.5	19.20	19.80	0.210
120	608/0.50	16.5	2.2	2.5	21.00	21.50	0.164
150	760/0.50	18.2	2.4	2.6	23.00	23.40	0.132
185	925/0.50	20.0	2.4	2.6	24.80	25.20	0.108
240	1221/0.50	23.0	2.6	2.8	28.20	28.60	0.0817
