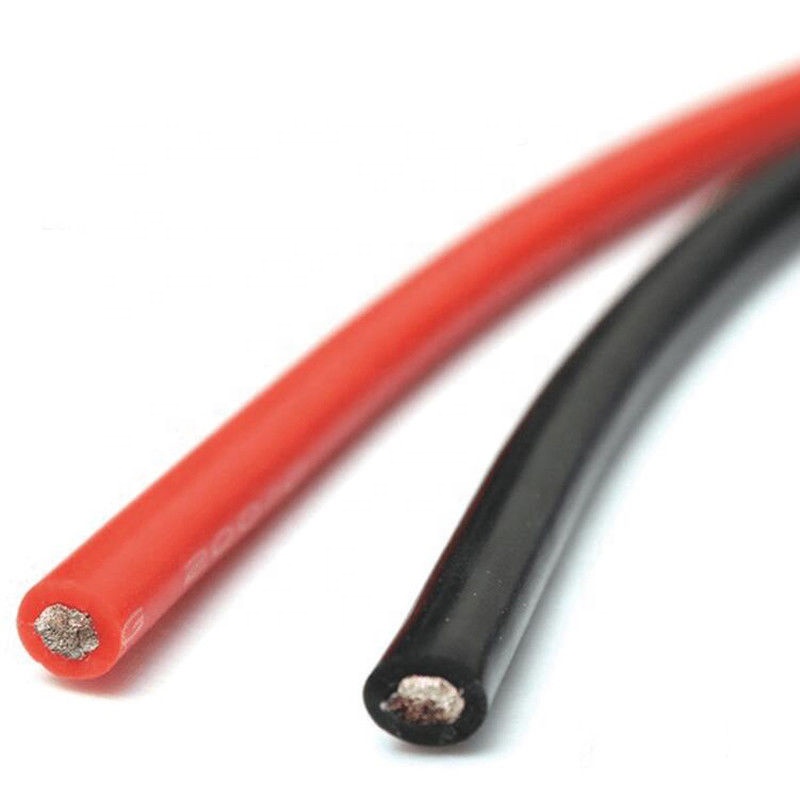

red color high flexible 18AWG silicone wire ul3135 wire can be used in long-term humid environment with excellent electrical performance, waterproof and mildew resistance. The bending performance is excellent. The minimum bending radius is 16 times of the cable outer diameter. It can be used movably. flexible silicone wire is used in high temperature environment such as mobile motor, steel, aviation, power plant and petrochemical industry with rated AC voltage of 300/500V or less.
red color high flexible 18AWG silicone wire ul3135 wire are divided into two types: braided (glass fiber) and non-braided.
UL3135 plus knitting technical parameters
■额定电压/Nominal voltage :600V
■温度范围/Temperature range :-60℃~+200℃
■颜色/Braid Colours :白- 蓝 - 红- 黑–棕 – 绿- 黄绿
■外径容差/O.D.Tolerance :±0.1mm
■试验电压/Testing voltage :2000V
■导体/Conductor :镀锡铜线/Tinned Copper
■绝缘体/Insulator :硅橡胶/Silicone
■编织/Braid :玻璃纤维+硅树脂/Silicone Fiberglas
UL3135 Unwoven Technical Parameters
导体
Conductor
绝缘体
Lnsulator
被覆
Jacket
导体最大电阻（20℃）Maximum
Resistance
At20℃ Ω/KM
包装
Packing
线规
AWG
线数/线径
No/mm
绞合外径
Dia
平均壁厚
Average
Thickness
(mm)
最小壁厚
Minim Wall
Thickness
(mm)
绝缘外径
Over
insulation
（mm）
编织厚度
（mm）Braid
Thickness
完成外径（mm）
Over Dia
米/卷Mt/coils
26
7/0.18
0.55
0.762
0.686
2.07
0.30
2.35
139.00
305
24
7/0.20
0.61
0.762
0.686
2.13
0.30
2.45
88.90
305
22
7/0.26
0.79
0.762
0.686
2.31
0.30
2.60
57.50
305
20
7/0.32
0.98
0.762
0.686
2.50
0.30
2.85
35.20
305
18
7/0.39
1.19
0.762
0.686
2.71
0.30
3.00
23.30
305
16
7/0.50
1.53
0.762
0.686
3.10
0.30
3.45
15.10
305
14
40/0.26
1.90
0.762
0.686
3.42
0.30
3.72
9.20
305
12
45/0.32
2.48
0.762
0.686
4.00
0.30
4.30
5.40
305
■额定电压/Nominal voltage :600V
■温度范围/Temperature range :-60℃~+200℃
■颜色/Braid Colours :白- 蓝 - 红- 黑–棕 – 绿- 黄绿
■外径容差/O.D.Tolerance :±0.1mm
■试验电压/Testing voltage :2000V
■导体/Conductor :镀锡铜线/Tinned Copper
■绝缘体/Insulator :硅橡胶/Silicone
导体
Conductor
绝缘体
Lnsulator
导体最大电阻（20℃）Maximum
Resistance
At20℃ Ω/KM
包装
Packing
线规
AWG
线数/线径
No/mm
绞合外径
Dia
平均壁厚
Average
Thickness
(mm)
最小壁厚
Minim Wall
Thickness
(mm)
绝缘外径
Over
insulation
（mm）
米/卷Mt/coils
26
7/0.18
0.55
0.762
0.686
2.07
139.00
305
24
7/0.20
0.61
0.762
0.686
2.13
88.90
305
22
7/0.26
0.79
0.762
0.686
2.31
57.50
305
20
7/0.32
0.98
0.762
0.686
2.50
35.20
305
18
7/0.39
1.19
0.762
0.686
2.71
23.30
305
16
7/0.50
1.53
0.762
0.686
3.10
15.10
305
14
40/0.26
1.90
0.762
0.686
3.42
9.20
305
12
45/0.32
2.48
0.762
0.686
4.00
5.40
200
