Flat Silicone Rubber Cable with Steel Wire YGCBG for Cranes, overhead cranes, girder cranes, single-girder overhead cranes, double-girder overhead cranes, overhead cranes, girder overhead cranes, special bridge cranes for metallurgy, all-gantry cranes, semi-gantry cranes, jib cranes, cantilever cranes, column cranes, wall-hanging cranes, balance cranes, tower cranes, portal cranes in high temperature environment Control, monitoring circuit and connection of signal transmission, control and measurement in power distribution equipment of frequent mobile electrical equipment such as crane, mobile crane gantry crane, cable crane, carrier bridge, rail crane, gantry crane, port heavy crane, travelling crane, crane, trolley, transmission machinery, plating crane and various flaw detection equipment.

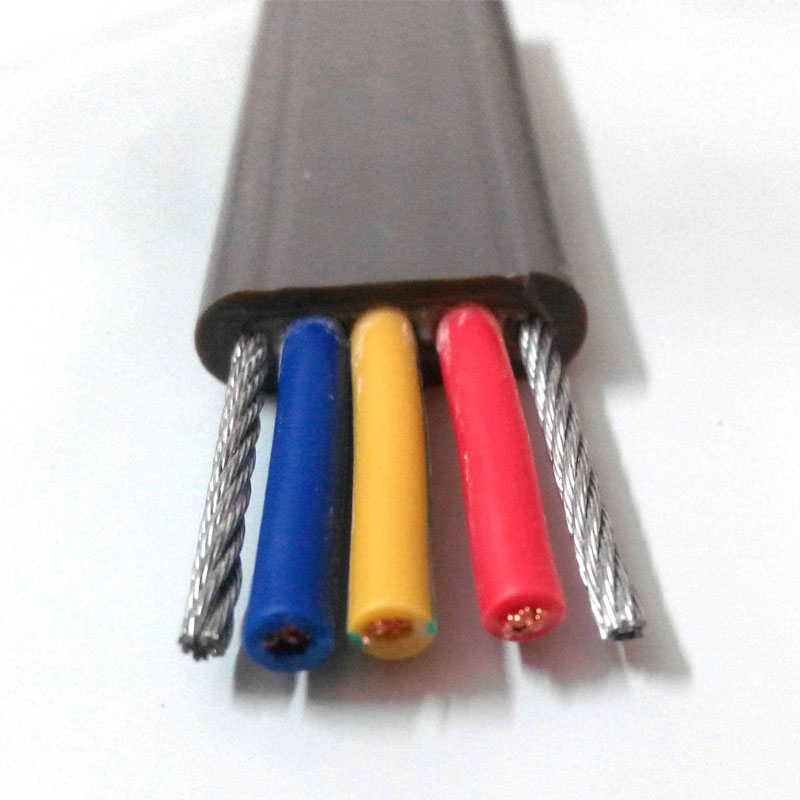

Flat Silicone Rubber Cable with Steel Wire YGCBG for Cranes structure:
Conductor: multi-strand stranded tin-plated copper wire conductor (silver or nickel-plated copper wire optional), in line with VDE 0295 and IEC 602885 type conductors
Insulation: Silicone Rubber/High Tear Resistance Silicone Rubber (Fire Retardant Insulation Optional)
Core wires: color or coded core wires, yellow-green double-color lines with 3 cores or more (optional)
Core Line Arrangement: One Word or Plum Blossom
Reinforcement: Two non-torsional self-supporting soft steel wires, bearing operating tension (optional fiber rope)
Sheath: Silicone rubber/high tear resistance silicone rubber (flame retardant sheath is optional)
Sheath color: black or red, can be selected according to customer needs of various colors
Flat Silicone Rubber Cable with Steel Wire YGCBG for Cranes characteristics:
The long-term working temperature of the cable shall not exceed 180 C.
High temperature resistance, low temperature resistance, acid and alkali resistance, aging resistance, moisture resistance
Different chemical resistance and can withstand medium mechanical stress
One word arrangement: the length of free use is more than 35 meters, and the moving speed is not more than 4 meters per second.
Plum Blossom Arrangement: Free use length greater than 80 meters, moving speed less than 10 meters per second
Flame retardancy: non-flammability test by GB/T 18380-2008
Flat Silicone Rubber Cable with Steel Wire YGCBG for Cranes technical parameters:
Working Voltage: 450/750V
Test cable: 2500V
Conductor resistance 20 C: According to VDE 0295 and IEC 602285, multiple strands of fine stranded tin-plated copper wire
Insulation resistance: > 1500 M_/km (20 C)
Small Bending Radius: Fixed Installation 8X D (Cable Outer Diameter)
Mobile Installation 10X D (Cable Outside Diameter)
Working Temperature: Fixed Installation - 60 ~ + 180 Temperature
Mobile Installation - 50 ~ + 180 Temperature
Cable Name |
Cable Type |
Rated Voltage |
Cores |
Conductor Structure |
Nominal Section(mm2) |
Flat Cable Steel Wire Reinforcement Type for High Temperature Resistant Crane |
YGCBG |
450/750V |
1 ~ 66 |
Multiple stranded conductors |
0.2 ~ 300 |
Flat Cable Steel Wire Reinforcement Type for High Temperature Resistant Crane |
YGGBG |
600/1000V |
1 ~ 66 |
Multiple stranded conductors |
0.2 ~ 300 |
Note: The above Flat Silicone Rubber Cable specifications are in common use. Special specifications can be customized according to user's requirements. |
