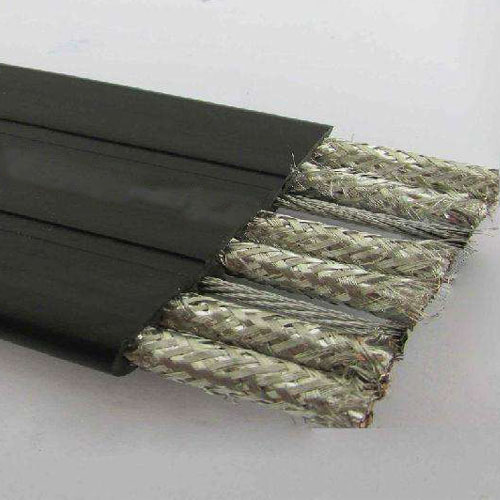

Copper wire shielded flexible flat cable TVVBP

Copper wire shielded flexible flat cable TVVBP
flexible flat cable
Product description: Copper wire shielded flexible flat cable TVVBP Widely used in mechanical towline, cable track, trolley, elevator, driving, tower crane, crane, telescopic mechanical equipment and other mobile electri
INQUIRY

Copper wire shielded flexible flat cable TVVBP Widely used in mechanical towline, cable track, trolley, elevator, driving, tower crane, crane, telescopic mechanical equipment and other mobile electrical power transmission lines and control, lighting and communication channels. Silicone rubber flat cable is insulated with flexible and environmentally friendly PVC material, resistant to oil, water, corrosion, high and low temperature, high mechanical strength, excellent chemical stability and dielectric properties, good product performance and safe use.
Copper wire shielded flexible flat cable TVVBP advantages
Flat cable for electroplating equipment is a versatile product with wide market demand. This product has been trusted by customers because of its quality, long service life and affordable price.
Conductor type
The conductor is made of multiple strands of fine-twisted oxygen-free copper wire, which is flexible.
Insulation characteristics
Flexible and environmentally friendly PVC material insulation, oil and water resistance, corrosion resistance, high and low temperature resistance, high mechanical strength, excellent chemical stability and dielectric properties, good product performance and safe use.
Applicable environment
-10°C~70°C
Applicable Products
It is suitable for transmission power chain, cable track, trolley, elevator, driving, tower crane, crane, telescopic mechanical equipment and other mobile electrical power transmission lines and control, lighting and communication channels with rated voltage of 450/750V and below.
Copper wire shielded flexible flat cable TVVBP Use characteristics
1. The maximum temperature of the conductor during normal use is 70 °C. The product is usually not suitable for use below 0 °C. When the temperature is lower than 0 °C, it can be negotiated between the buyer and the manufacturer, and designed and manufactured according to the customer's technical requirements and conditions of use.
2. The conductor of this product is stranded with TR soft copper conductor, and some products are covered with high-strength film tape as the reinforcing layer of the cable to improve the bending resistance of the product when moving.
3, cable insulated core insulated wire core digital number, placed in parallel, cable structure is soft, easy to lay and install, similar size can be designed and improved according to customer needs.
4. The rated voltage of the elevator cable is 1 mm2 and below 300/500V for the nominal cross section of the core wire, and 450/750 V for the core wire section of 1 mm2 or more.

Copper wire shielded flexible flat cable TVVBP construction and typical performance parameters:

Model	Number of cores and nominal section （N×m㎡）	Insulation thickness (mm)	Cable reference outer diameter (mm)	Cable reference weight (kg/km)	20°C conductor maximum DC resistance （Ω/km）
TVVBP	12×0.75	0.6	5.2×40	436.4	26
	12×1.25	0.6	6.0×48	616	16
	10×1.5	0.8	6.4×50.4	645.6	13.3
	12×1.5	0.5	6.0×48	643.1	13.3
	13×1.25	0.6	6.0×50	599．5	16
	10×2.5	0.8	6.4×50.4	730	7.98
	12×2.5	0.7	6.4×55.8	960	7.98
