AWG Silicone Rubber Cable

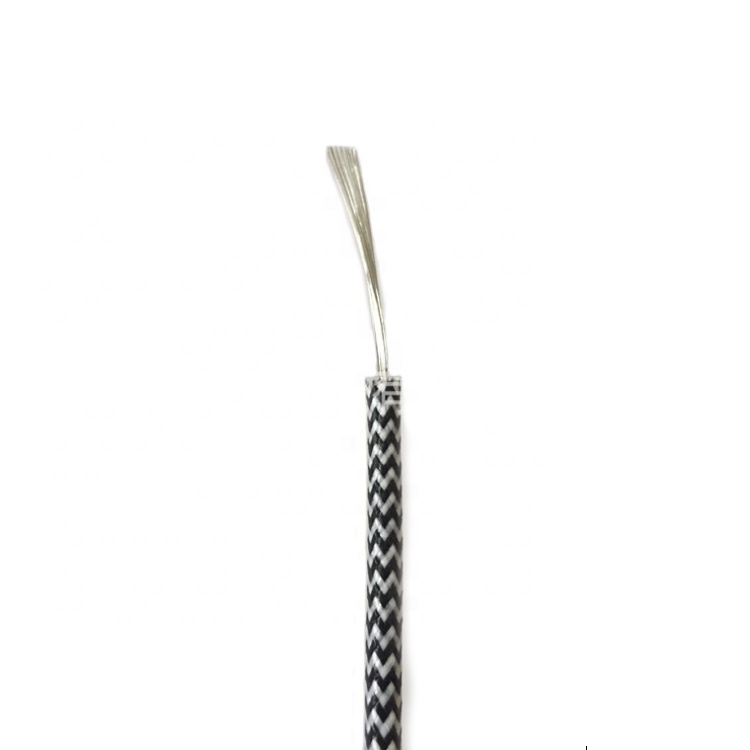

H05SJ-K silicone rubber cable with fiber glass braiding wire UL3122 4mm 6mm

H05SJ-K silicone rubber cable with fiber glass braiding wire UL3122 4mm 6mm
Product description: H05SJ-K silicone rubber cable with fiber glass braiding wire UL3122 4mm 6mm allows the working temperature to be 180 degrees for a long time, and silicone rubber cable is suitable for various househo
INQUIRY

H05SJ-K silicone rubber cable with fiber glass braiding wire UL3122 4mm 6mm allows the working temperature to be 180 degrees for a long time, and silicone rubber cable is suitable for various household appliances, lighting fixtures, electronic devices, temperature sensing and the like.

H05SJ-K silicone rubber cable

Rated voltage: 300V/500V
Temperature range: -60 ° C ~ +180 ° C
Conductor: 0.5mm2~6mm2 tinned copper wire
Insulator: silicone rubber
Weaving: fiberglass + silicone
Outer diameter tolerance: ±0.1mm

Color: white-blue-red-black-brown-yellow-green-yellow-green

silicone rubber cable with fiber glass braiding wire UL3122

H05SJ-K silicone rubber cable with fiber glass braiding wire UL3122 4mm 6mm can be used in long-term humid environment, with excellent electrical properties and waterproof and mildew resistance. Excellent bending performance, the minimum bending radius is 16 times the outer diameter of the cable, and can be used flexibly. It is used in high-temperature environments such as mobile motors, steel, aviation, power plants, and petrochemicals with AC rated voltages of 300/500V and below.
