Silicone rubber flat cable

Silicone rubber sheathed flat cable

Silicone rubber sheathed flat cable
Silicone rubber flat cable
Product description: Silicone rubber sheathed flat cable is suitable for casting cranes, harbor machines and trolleys with rated AC voltage of 0.6/1KV or less. The product has the characteristics of high temperature resis
INQUIRY

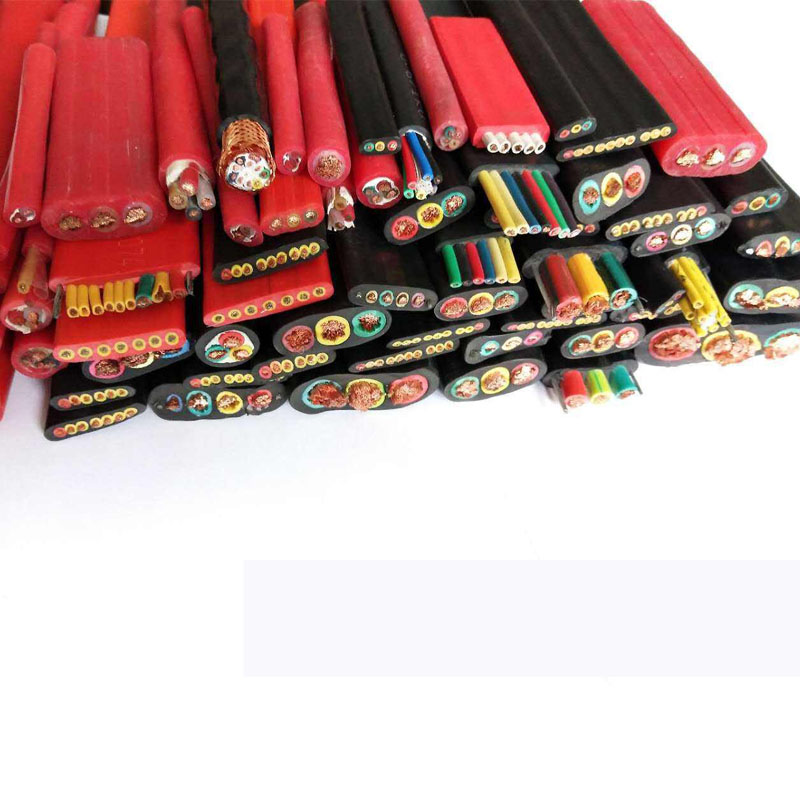

Silicone rubber sheathed flat cable is suitable for casting cranes, harbor machines and trolleys with rated AC voltage of 0.6/1KV or less. The product has the characteristics of high temperature resistance, cold resistance, tension resistance, oil resistance, corrosion resistance, flexible and flat cable structure, easy laying, stable electrical performance in high temperature and cold environment, anti-aging, long service life, etc. Silicone rubber flat cable is widely used in metallurgy, power, petroleum, chemical industry, port and mobile equipment manufacturing industries.

Usage Characteristics of Silicone rubber sheathed flat cable
1. AC rated voltage: U0/U 0.6/1KV;
Maximum operating temperature: 180°C;
Minimum ambient temperature: fixed laying -60°C;
2. Installation and laying temperature of cable is not lower than - 25°C.
Silicone rubber sheathed flat cable Basic Model and Name

Model	Product name
YGGB	Flat flexible cable for silicone rubber insulation and sheath movement
YGCB-VFR	Nitrile insulated silicon rubber sheathed flat flexible cable for mobile
YGCB-AF₄₆R	F46 insulated silicone rubber sheathed flat flexible cable
YGCPB	Silicone rubber insulated and sheathed tinned copper wire braided phase-shielded shielded flat flexible cable
YGCB-VFRP	Nitrile insulated silicon rubber sheathed tinned copper wire braided phase-shielded shielded flat flexible cable
YGCB-AF₄₆RP	F46 insulated silicone rubber sheathed tinned copper wire braided phase-shielded shielded flat flexible cable

Silicone rubber sheathed flat cable Meaning of Code Names

Code name	Code meaning
Y	Mobile Series
G	Silicone rubber insulation or sheath
VF	Nitrile butadiene insulation or sheath
B	Flat type
P	Copper Wire (Tin-plated Copper Wire) Shielding
F₄₆	Polyperfluoroethylene propylene F46

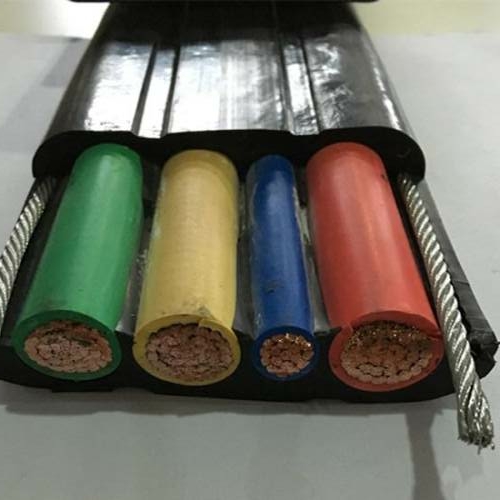

Silicone rubber sheathed flat cable specific specifications can be produced according to customer's needs. If long-distance suspension or other reasons bear large tension, reinforced steel wire can be added between them. After the cable type, add-nT (n represents the number of steel wires, according to the width of the cable).
