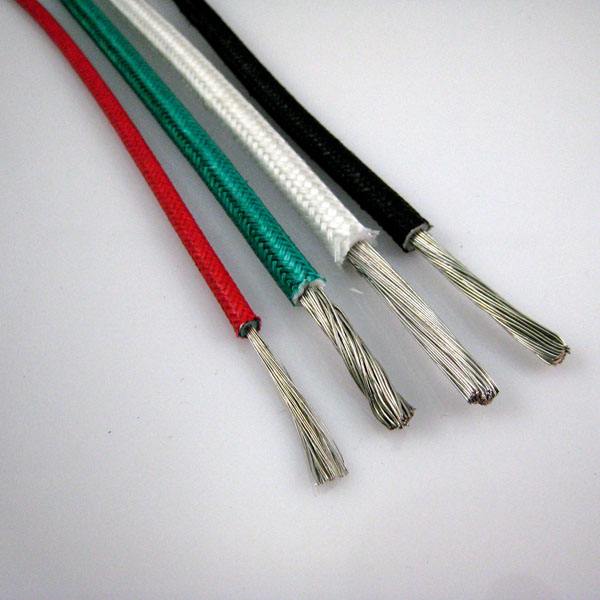

Glass fiber braid silicone rubber insulated high temperature cable YG

Glass fiber braid silicone rubber insulated high temperature cable YG
high temperature cable
Product description: Glass fiber braid silicone rubber insulated high temperature cable YG is suitable for high temperature or large temperature difference in short time. It is widely used in metallurgical and petrochemic
INQUIRY

Glass fiber braid silicone rubber insulated high temperature cable YG is suitable for high temperature or large temperature difference in short time. It is widely used in metallurgical and petrochemical industries such as steel mills, smelters, brick kilns, etc. It can also be used in lamps, sauna equipment, electric appliances, car lighting. , burning appliances, etc. Silicone rubber cable is soft in structure and easy to install and lay. The tinned copper wire braided shield makes the cable have strong resistance to external electromagnetic interference and ensures stable transmission of data and signals.
Flexible silicone wire structure
Conductor: multiple strands of tinned tinned or silver plated copper wire
Insulator: silicone rubber insulation
Weaving: fiberglass weaving
Temperature range: -60 ° C ~ +180 ° C
Rated voltage: 300V/500V

Color: red / yellow / blue / white / black / yellow green / brown / orange / purple / green / transparent, etc.

Nominal cross section （mm2）	Conductor structure Number of roots / single wire diameter	Insulation thickness （mm）	Woven thickness （mm）	Average outer diameter （mm）	Conductor resistance at 20 °C value（Ω/km）
0.50	28 × 0.15	0.60	0.15	2.40	40.1
0.75	42 × 0.15	0.60	0.15	2.65	26.7
1	32 × 0.20	0.60	0.15	2.80	20.0
1.5	48 × 0.20	0.70	0.18	3.40	13.7
2.5	49 × 0.25	0.80	0.18	4.00	8.21
4	56 × 0.30	0.80	0.20	4.60	5.09
6	84 × 0.30	0.80	0.20	5.20	3.39
10	84 × 0.40	1.00	0.25	6.70	1.95
16	126 × 0.40	1.00	0.25	9.00	1.24
