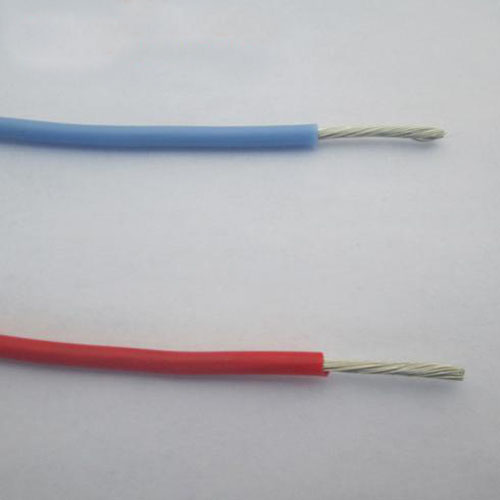

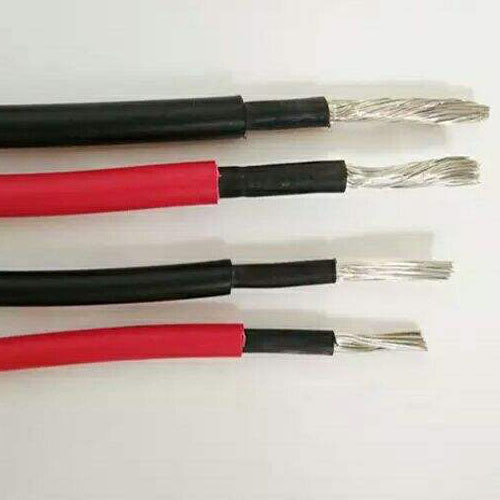

Silicone rubber flexible single-core wire AGR

Silicone rubber flexible single-core wire AGR
wire AGR
Product description: Silicone rubber flexible single-core wire AGR has excellent high temperature resistance, low temperature resistance, excellent electrical insulation performance, excellent chemical stability
INQUIRY

Silicone rubber flexible single-core wire AGR has excellent high temperature resistance, low temperature resistance, excellent electrical insulation performance, excellent chemical stability, high voltage resistance, aging resistance, long service life, softness and easy installation.

Silicone rubber flexible single-core wire AGR Features:
1, rated voltage: 300/500V
2, working temperature: -60 ~ +180 ° C

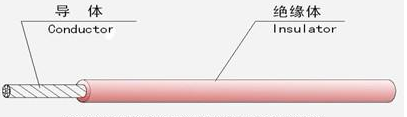

3. Conductor: bare copper wire or tinned copper stranded wire
4, insulation: silicone rubber
5. Color: agreement between the supplier and the buyer

Conductor structure			Wire outer diameter	20 °C conductor resistance maximum
Nominal cross section （mm2）	Number of roots / wire diameter （mm）	Conductor outer diameter （mm）	（mm）	（Ω/km）
0.05	14/0.07	0.30	1.30	370
0.08	21/0.07	0.37	1.30	188
0.10	12/0.10	0.40	1.30	188
0.13	39/0.07	0.50	1.40	136
0.20	52/0.07	0.60	1.60	97.8
0.33	84/0.07	0.80	1.80	71.2
0.40	105/0.07	0.90	1.80	54.8
0.50	100/0.08	1.06	2.16	40.1
0.75	384/0.05	1.20	2.40	26.7
1.0	200/0.08	1.50	2.70	20
1.50	304/0.08	1.90	3.30	13.7
2.0	418/0.08	2.20	3.60	10.25
2.50	494/0.08	2.40	4.00	8.21
4.0	798/0.08	3.00	4.60	5.09
6	1200/0.08	3.60	5.60	3.39

Silicone rubber flexible single-core wire AGRWidely used in lighting, household appliances, electric appliances, instrumentation, motor wiring and electronics, lamps, burning appliances and other high temperature environments.Welcome to provide your request, we customize according to your cable requirements.
