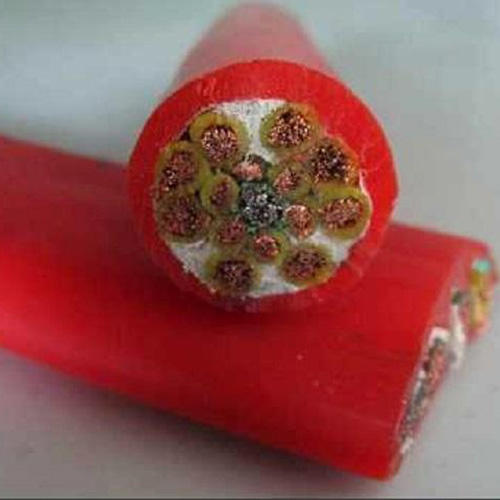

Fluoroplastic F46 insulated silicon rubber sheathed power flexible cable

silicon rubber sheathed power flexible cable
Product description: Fluoroplastic F46 insulated silicon rubber sheathed power flexible cable is applicable to AC rated voltage 0.6/1KV and below for fixed laying transmission and distribution lines, power transmission
INQUIRY

Fluoroplastic F46 insulated silicon rubber sheathed power flexible cable is applicable to AC rated voltage 0.6/1KV and below for fixed laying transmission and distribution lines, power transmission or motor wiring, with high temperature resistance, corrosion resistance, acid and alkali resistance, corrosive gas, waterproof and other characteristics, high temperature environment electrical performance, It has large current capacity and long service life, and is widely used in metallurgy, electric power, petrochemical, large-scale construction, automobile manufacturing and other industries.
Fluoroplastic F46 insulated silicon rubber sheathed power flexible cable Use characteristics
1. AC rated voltage: U0/U 0.6/1KV
2. Maximum working temperature: Polytetrafluoroethylene propylene (F46) insulation does not exceed 200 ° C
Soluble polytetrafluoroethylene (PFA) insulation does not exceed 260 ° C
3. Low ambient temperature: fluoroplastic insulation and sheath
Fixed laying -40 ° C, non-fixed laying -15 ° C
4. The cable installation temperature should not be lower than 0 °C (fluoroplastic, silicone rubber and nitrile sheathed cable not lower than -25 °C).

5. The allowable bending radius of the cable: the single-core cable is at least 15 times the outer diameter of the cable, and the multi-core cable is at least 10 times the outer diameter of the cable.

High temperature power flexible cable type

Model	Product Name	Normal Operating Temperature °C
FF46	Fluoroplastic insulated and sheathed steel tape armored power cable	-60-200
FF46-22	Fluoroplastic insulated and sheathed copper braided shielded power cable	-60-200
FF46P	Fluoroplastic insulated flame retardant PVC sheathed power cable	-60-200
ZR-F46（FV）	Fluoroplastic insulated steel tape armored flame-retardant PVC sheathed power cable	-40-105
ZR-F46-22（FV22）	PFA insulated and sheathed power cable (imported raw material)	-40-105
ZR192-FF46	PFA insulated and sheathed copper braided shielded power cable (imported raw material)	-60-260
ZR192-FF46P	PFA insulated and sheathed steel tape armored power cable (imported raw material)	-60-260
ZR192-FF46-22	Fluoroplastic insulated silicon rubber sheathed power cable	-60-260
YGC-F46（FG）	Fluoroplastic insulated steel tape armored silicone rubber sheathed power cable	-60-180
YGC-F46-22（FG22）	Fluoroplastic insulated flame retardant nitrile PVC sheathed power cable	-60-180
YVF-F46	Fluoroplastic insulated steel strip armored flame retardant nitrile PVC sheathed power cable	-60-105
YVF-F46-22	Fluoroplastic insulated and sheathed steel tape armored power cable	-60-105

High temperature power flexible cable meaning

Code	Code meaning
F（F46）	Polytetrafluoroethylene (F46)
YVF	Nitrile rubber
G	Silicone Rubber
192	Imported PFA insulation and sheath
ZR（V）	Flame-retardant PVC (three flame retardant 70 °C, 90 °C, 105 °C)
22	Steel belt armor
32	Thin steel wire armor
P	Copper braided shield
R	Stranded conductor

Our company specializes in producing high temperature resistant cables such as silicone rubber cable and silicone rubber flat cable. Please contact us for communication.
