Flexible silicone wire

YG UL3068/UL3069/ul3071/3074/3075/3122 silicone fiber glass braided wire

YG UL3068/UL3069/ul3071/3074/3075/3122 silicone fiber glass braided wire
Product description: YG UL3068/UL3069/ul3071/3074/3075/3122 silicone fiber glass braided wire (treated with external silicone resin), the product has the characteristics of heat radiation, cold resistance, acid and alkali
INQUIRY

YG UL3068/UL3069/ul3071/3074/3075/3122 silicone fiber glass braided wire (treated with external silicone resin), the product has the characteristics of heat radiation, cold resistance, acid and alkali resistance, corrosive gas, waterproof, etc. Silicone rubber control cable structure is soft, the radiation is convenient, and the electrical performance is stable under high temperature (cold) environment. Excellent anti-aging performance and long service life.

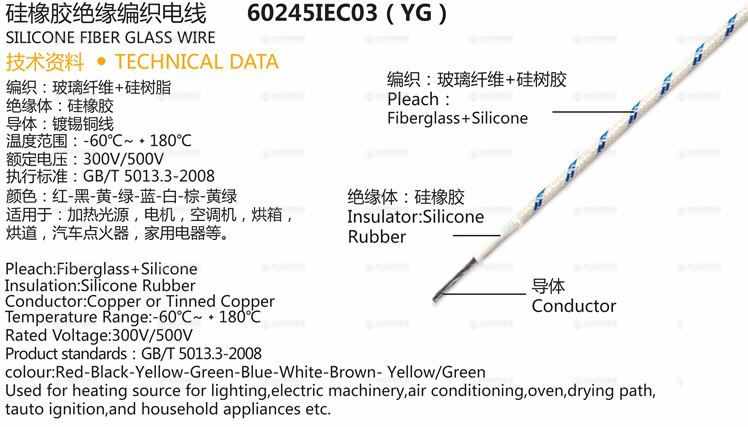

YG UL3068/UL3069/ul3071/3074/3075/3122 silicone fiber glass braided wire Features
1. Rated temperature: -60 °C ~ +200 °C (maximum use ambient temperature: 200 °C minimum use ambient temperature: -50 °C surface temperature up to: 350 °C)
2, rated voltage: 500V
3. Implementation standard: GB5013.3-1997
4, conductor: single or multiple tinned copper wire
5, color: red, yellow, blue, white, black, green, brown, gray, orange, yellow green, transparent, etc.
6, insulator: silicone rubber plus glass fiber weaving (treated with external silicone)

7. Performance: silicone rubber cable has good acid resistance, alkali resistance, antifungal properties, resistance to hot and humid environment and various oils; long service life; test voltage 2000V, spark test 5000V without breakdown;

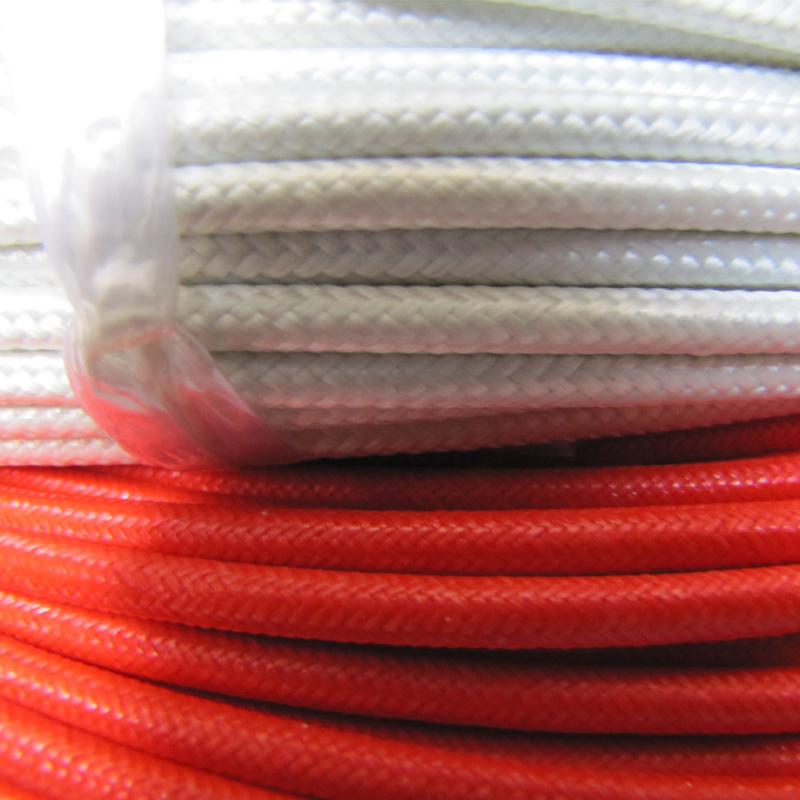

silicone fiber glass braided wire
