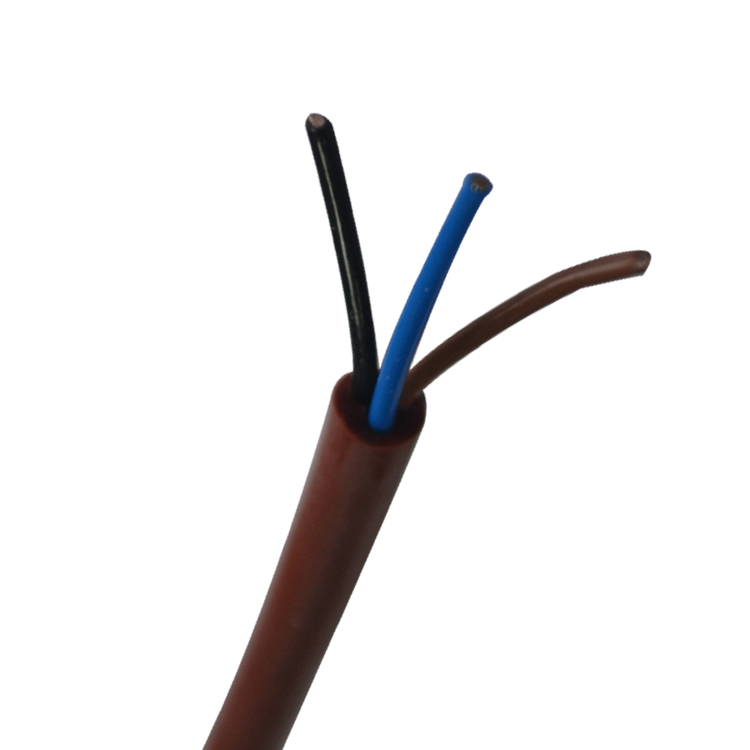

YGF 3C0.5MM 20AWG fep insulation silicone jacket high temperature resistance wire

silicone jacket high temperature resistance wire
Product description: YGF 3C0.5MM 20AWG fep insulation silicone jacket high temperature resistance wire is suitable for long-term allowable working temperature of cable below + 180 C and allowed to be used within the ambie
INQUIRY

YGF 3C0.5MM 20AWG fep insulation silicone jacket high temperature resistance wire is suitable for long-term allowable working temperature of cable below + 180 C and allowed to be used within the ambient temperature range of - 60 C. It is used for electrical connection between mobile electrical appliances in high temperature environment such as power generation, metallurgy, chemical industry, etc. Wiring in high temperature places such as household appliances, lighting fixtures, electronic equipment, electrothermal products, heavy machinery, electrical installation, industrial machinery, electrothermal products, etc. silicone wire has good acid resistance, alkali resistance and fungal resistance, can withstand hot and humid environment and a variety of oils. At the same time, the cable has good flexibility, waterproof, pressure resistance and other advantages.
YGF 3C0.5MM 20AWG fep insulation silicone jacket high temperature resistance wire characteristics:
1. Rated voltage: 300/500V
2. Working Temperature: -60~+200 C
3. Conductor: stranded tin-plated copper wire
4. Insulation: FEP Fluoroplastics
5. Sheath: Silicone Rubber

6. Color: red/yellow/blue/white/black/yellow/green/brown/green, etc.

Specifications (AWG)	Conductor structure Root/meridian (MM)	Temperature resistance (Celsius degree)	Withstand voltage (KV)	Outer diameter OD (MM)	Packaging length (M)
16	52/0.18	200 degrees	3KV	2.5	305
18	30/0.18	200 degrees	3KV	2.17	305
20	20/0.18	200 degrees	3KV	1.91	305
22	12/0.18	200 degrees	3KV	1.76	305
24	11/0.16	200 degrees	3KV	1.6	305
26	7/0.16	200 degrees	3KV	1.5	305
28	7/0.12	200 degrees	3KV	1.37	305
30	7/0.10	200 degrees	3KV	1.0	305
